Delta+
A compact system for agricultural and utility buildings. Spans 6–15 m.
Roof pitch
10°
Frame spacing
4 or 5 m
Width
6–15 m
Eaves height
2.5–5 m
Length
from 10 m
Typical uses
Garages, warehouses, hangars, workshops, industrial, retail, sports and office buildings, shops.
Not recommended for residential buildings.

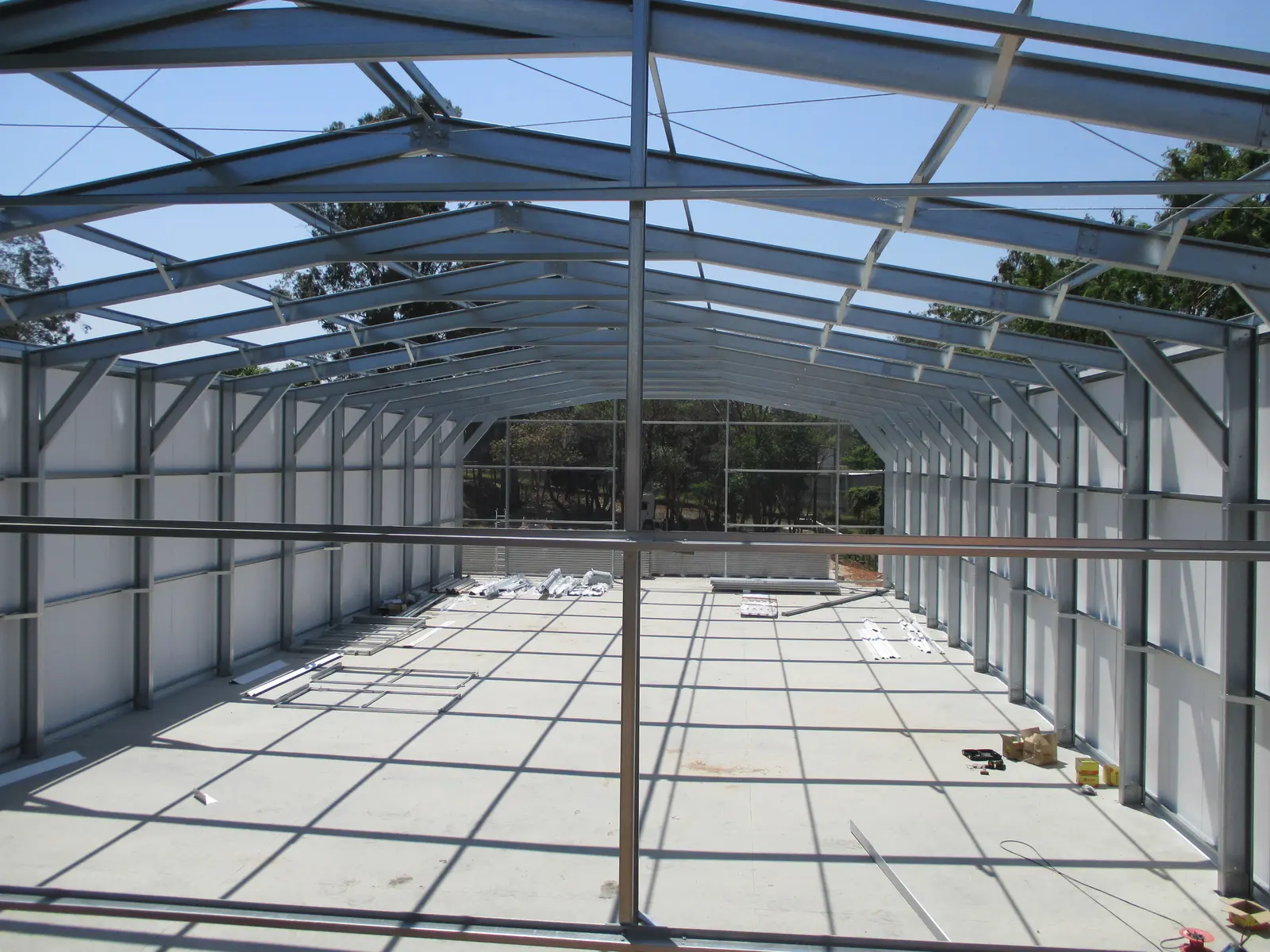

The frame is fully galvanised. Columns and beams are cold-formed C300 sections, single or double depending on the structural design.
Connections are bolted. Z120 or C120 purlins and galvanised rebar wind bracing provide stiffness.
Uninsulated cladding is TR45 sheet; insulated cladding is sandwich panels. Facades can take windows, doors and gates; the roof can take translucent openings.

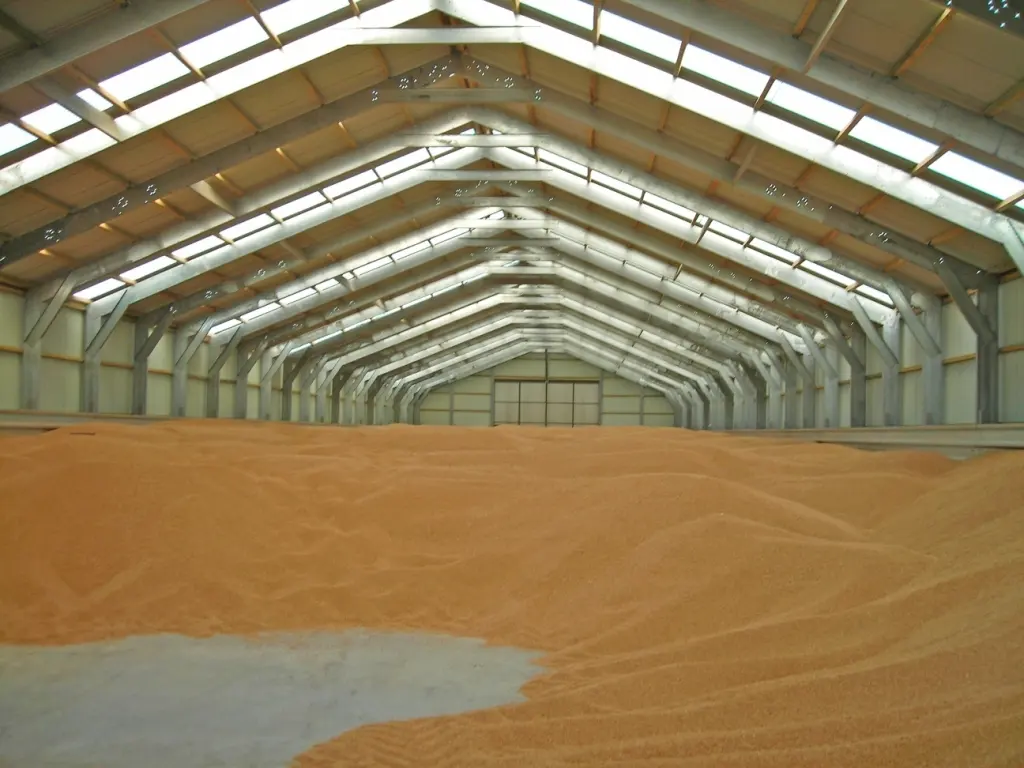

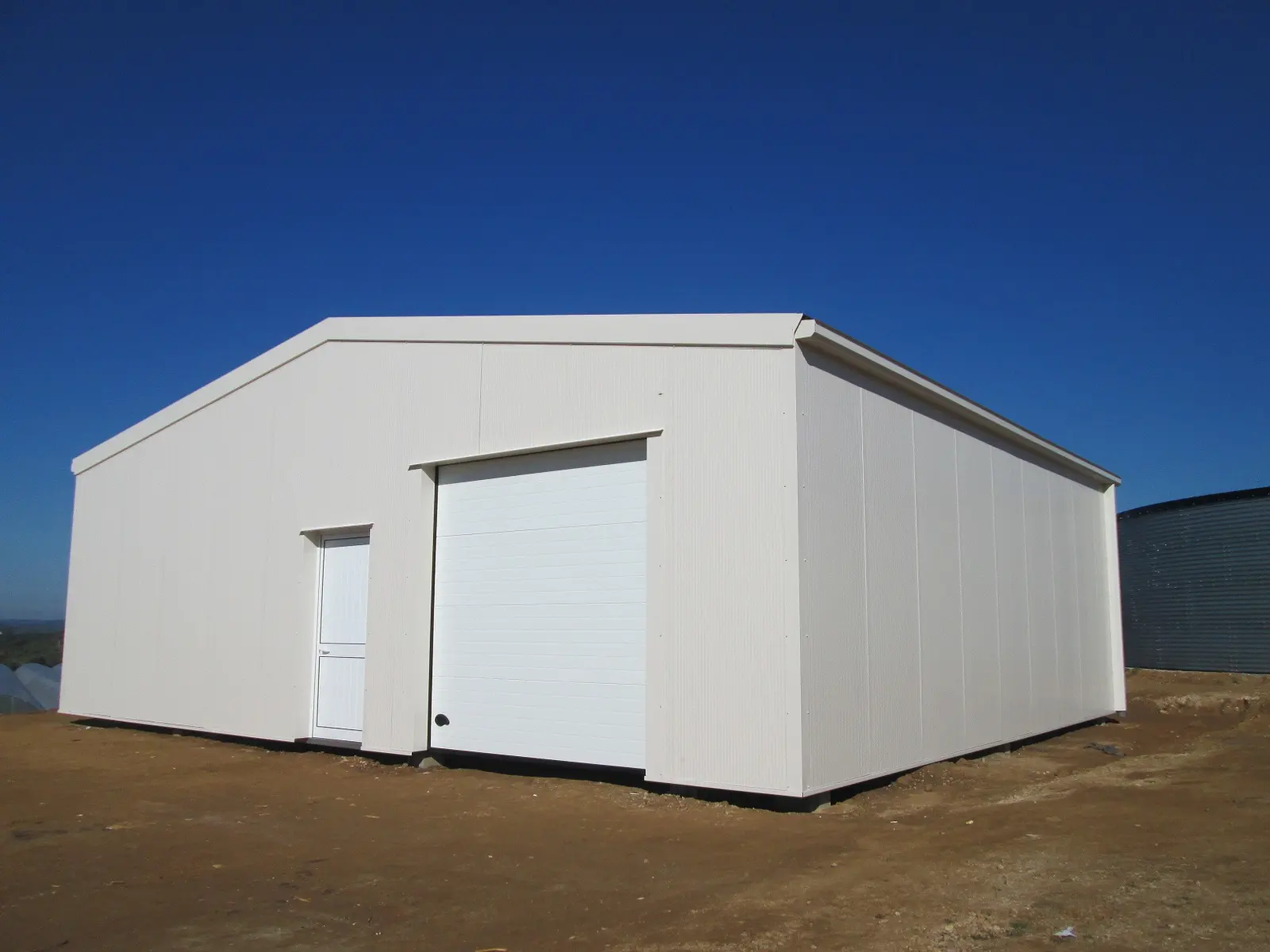

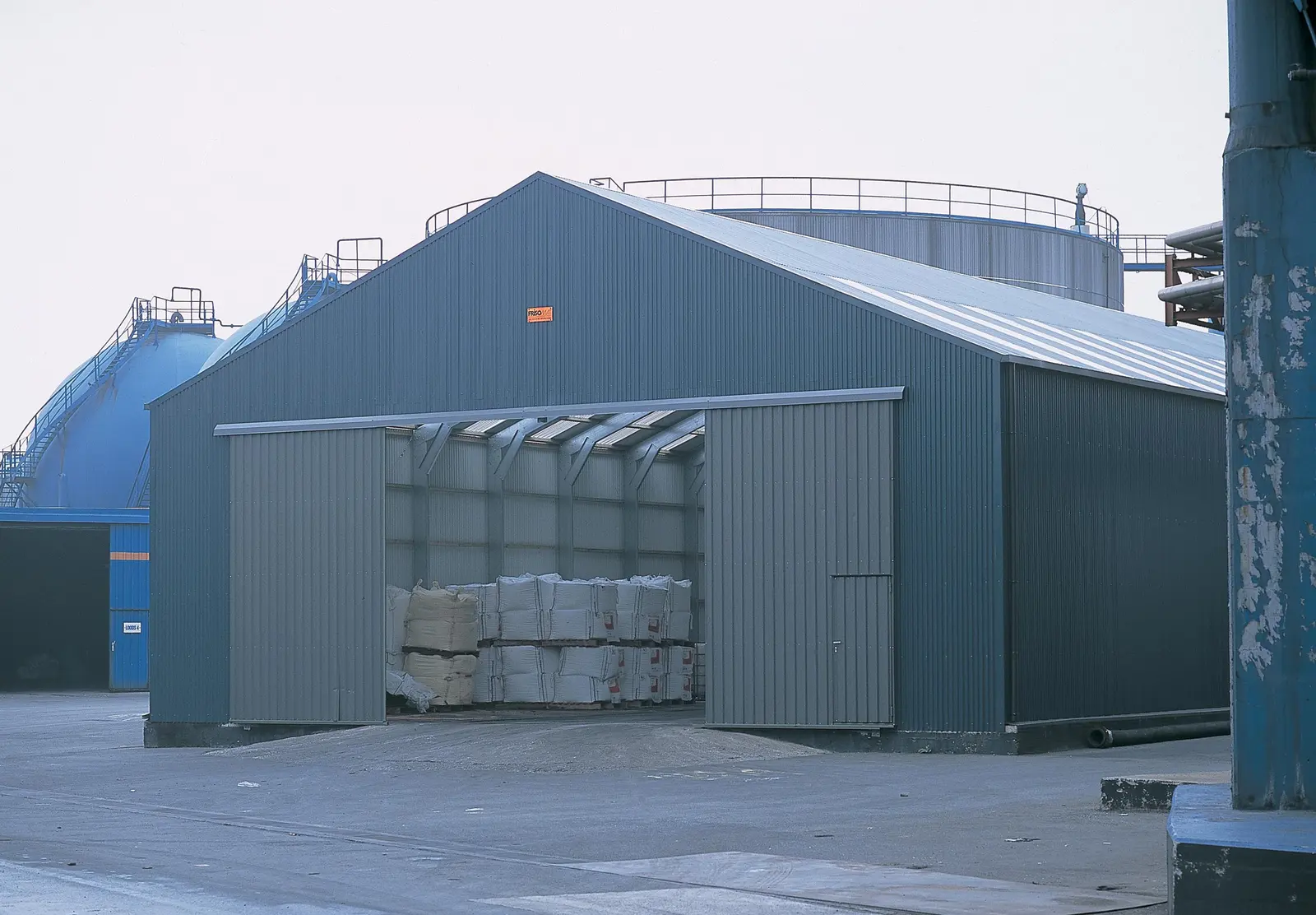

Examples
